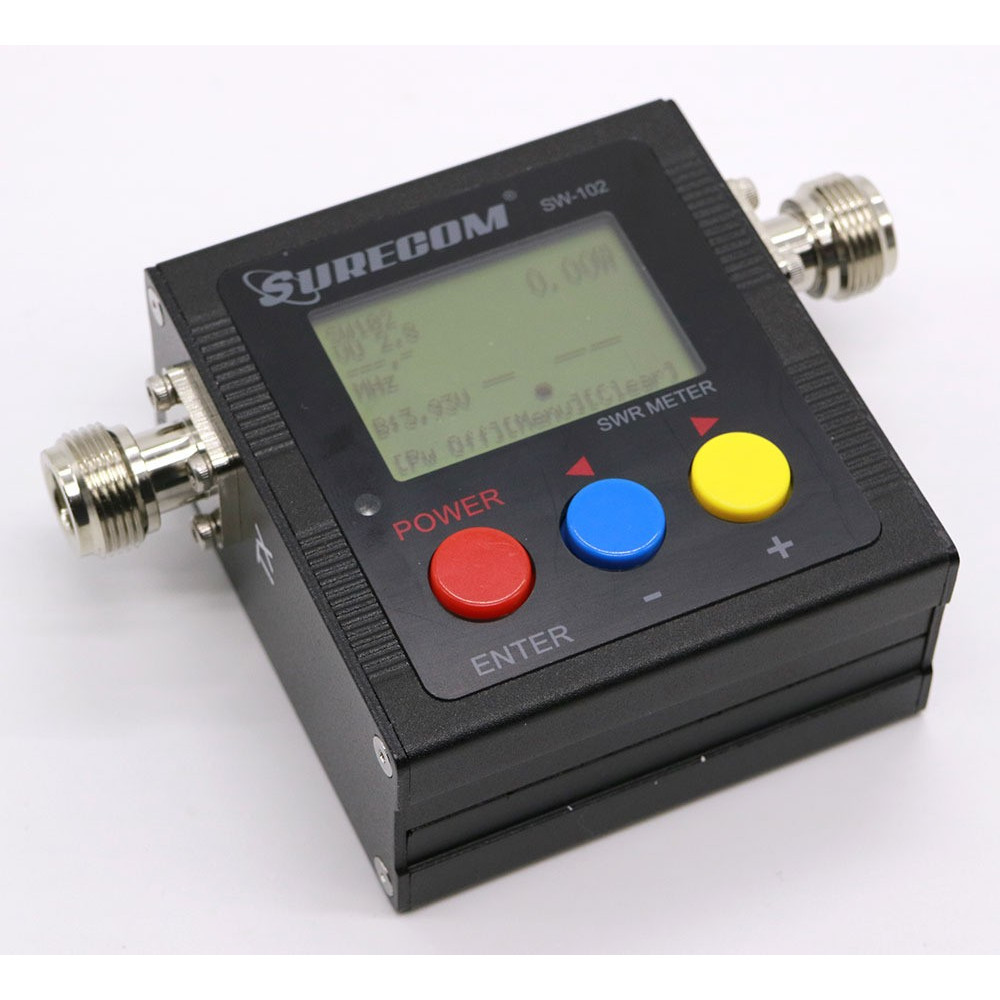

Medidor de estacionarias Surecom SW-102

Medidor de estacionarias Surecom SW-102 Digital VHF/UHF SWR & POWER WATT METER .

Solicitar más información acerca del producto

Medidor de estacionarias Surecom SW-102

Nombre: ^*

Número de teléfono:

Email: ^*

Mensaje: ^*

Deseo suscribirme a la newsletter

Acepto los términos y condiciones.

^* Campos requeridos

Interface: SO239

MAX. Power in	120 W (Measurable power,Radio must be ANALOG)
V.S.W.R	1.00~19.9
Frequency Ranger	COVER : 125MHz~525MHz
Insertion Loss	< 0.15dB(VHF) , < 0.25dB(UHF)
Temperature	0℃~60℃
Frequency counter	Yes ( TX input must be minimum 0.5W + - 0.5%)
Battery Display	Yes
Battery Build-in	3.7V Li-ion Battery
Auto Power Off	1-9 mins
Size	666837 (mm)
Charger in	5V (micro usb)
Backlight	AUTO OFF
Interface (in and out )	SO239
Weight	220g (include battery)

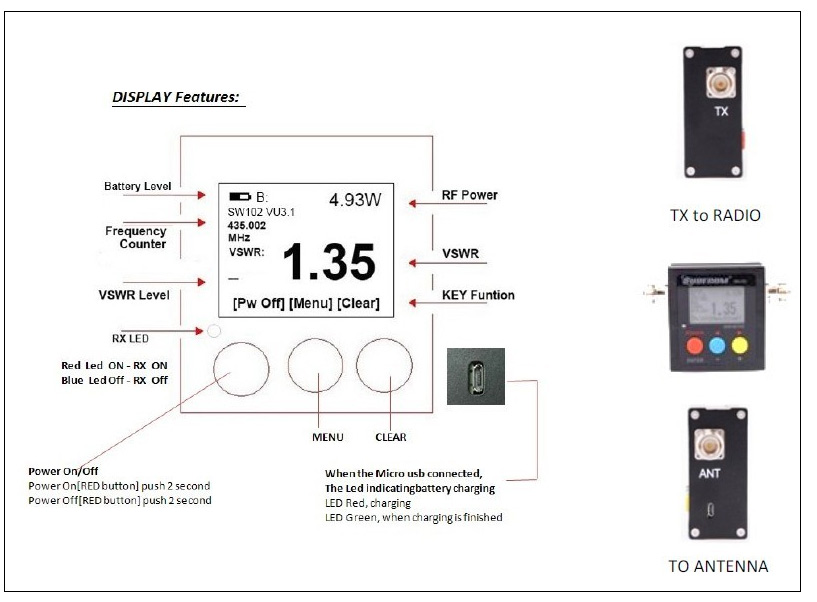

MENU Display (Note: Version for up to V3.8)

No.	Mode	Adj	Default Setting	Content
1	Adjustment Forward	-99 to +99	0	Fine Tune Level %
2	Adjustment Reverse	-99 to +99	0	Fine Tune Level %
3	Adjustment Time Base	-99 to +99	0	Frequency Counter ,OSC Time Base
4	LCD DIM (Back Light Time)	0-9	1	"0" is always on, 1 min to 9 mins
5	POWER OFF	0-9	3	"0" is always on, 1 min to 9 mins

LA CAJA CONTIENE:
